Advanced Excel Data Analysis Cheat Sheet

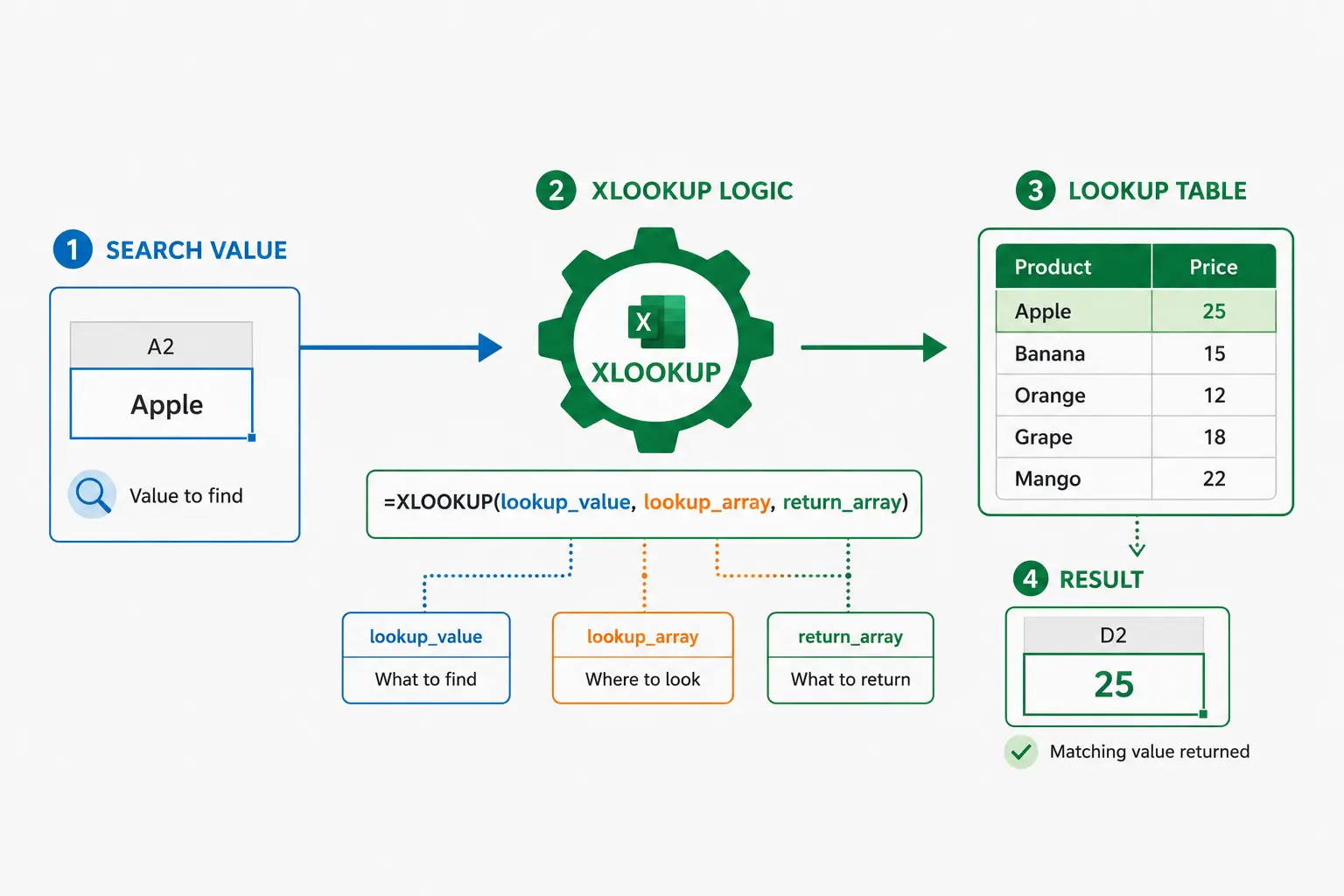

1. Advanced Lookups for Data Analysis

Advanced lookup techniques help connect datasets, retrieve related values, and build reports that update when source data changes.

Use XLOOKUP for most modern Excel lookup tasks. Use INDEX and MATCH when maintaining older workbooks or when the model requires more flexible row and column matching.

For complex analysis:

• Convert source ranges into Excel Tables.
• Use stable identifiers instead of names or descriptions.
• Return a clear fallback value when no match exists.
• Check for duplicate lookup keys before trusting the result.
• Test the formula against missing, duplicate, and unexpected values.
• Use Power Query when several tables require repeated merging or transformation.

For syntax, examples, and additional lookup functions, see the Excel Formulas Cheat Sheet.

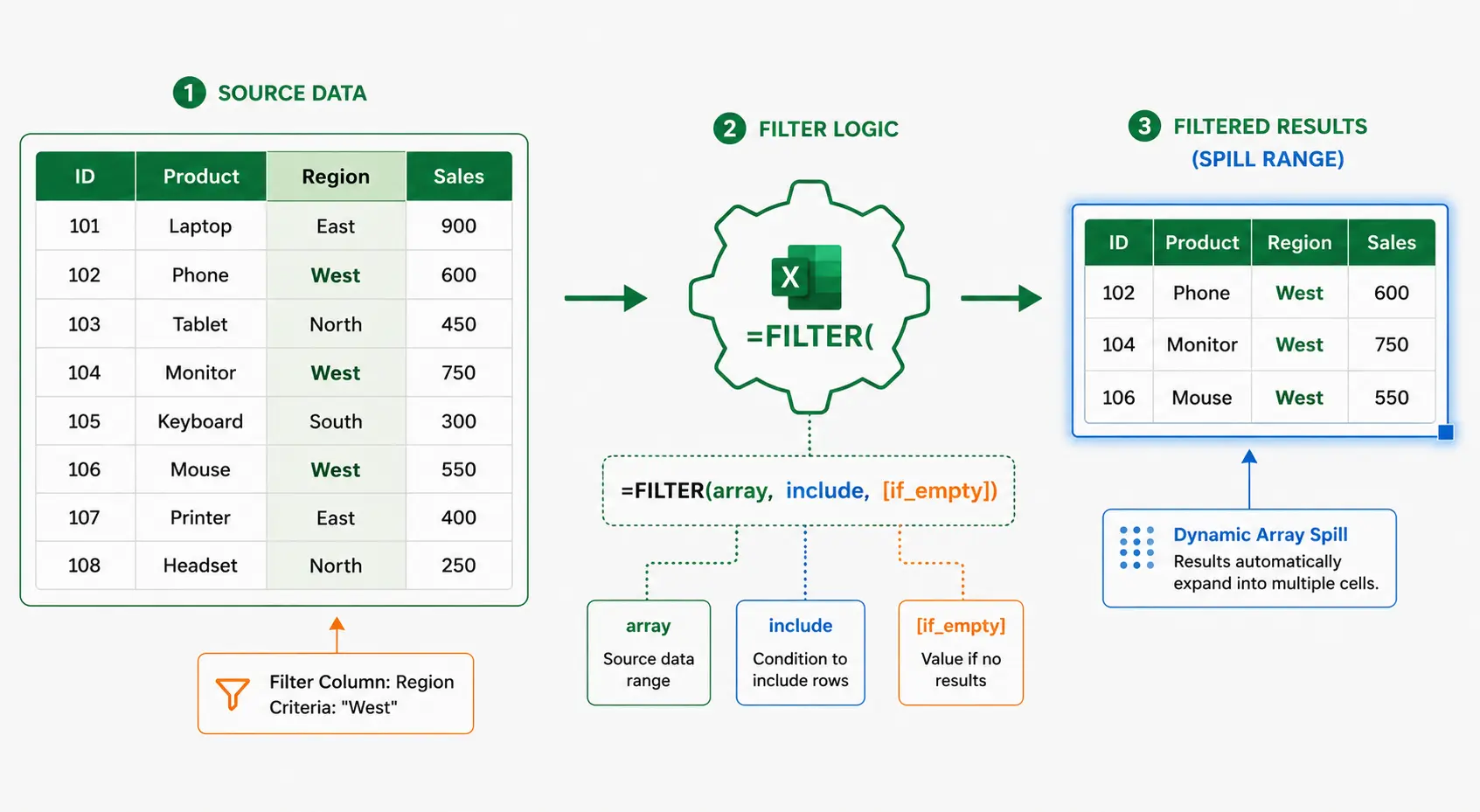

2. Dynamic Arrays for Flexible Analysis

Dynamic arrays return multiple results from one formula and keep analytical outputs responsive when the source data changes. In modern Excel, they can replace many helper columns, copied formulas, and manually maintained extracts.

Choose the Right Dynamic Array Function

• FILTER: Return only rows that meet defined criteria.
• UNIQUE: Create a changing list of distinct values.
• SORT and SORTBY: Organize results without changing the source table.
• SEQUENCE: Generate numbered rows, periods, or other structured series.

Recommended Dynamic Array Workflow

1. Store the source data in an Excel Table.
2. Place the dynamic array formula outside the table.
3. Use structured references or clearly defined source ranges.
4. Keep the expected spill area empty.
5. Return a clear message when no records match the criteria.
6. Validate row counts, totals, and unique values.
7. Use the verified output in summaries, charts, or reporting workflows.

Common Problems

• A #SPILL! error means something is blocking the output range.
• Dynamic array formulas cannot spill inside an Excel Table.
• Blank cells and inconsistent data types can produce unexpected results.
• Entire-column references can reduce performance in large workbooks.
• Downstream formulas should reference the complete spill range when the number of results can change.

Use dynamic arrays for responsive workbook analysis. Use Power Query when data must be imported, cleaned, combined, or reshaped repeatedly.

3. Business Rules & Model Validation

Advanced Excel models often convert business rules into classifications, calculations, and decisions. The logic should remain understandable, testable, and easy to update when requirements change.

Choose the Right Approach

• IFS or SWITCH: Use for a limited number of clearly defined categories.
• SUMIFS and COUNTIFS: Use for conditional totals and record counts.
• AND and OR: Use when several conditions must be evaluated together.
• Lookup table: Use when thresholds, rates, or classifications must be maintained outside the formula.
• Power Query: Use when classification rules should be applied during a repeatable data-refresh process.

Business Logic Workflow

1. Write the complete rule in plain language.
2. Identify the required inputs and expected output.
3. Place changing thresholds or rates in a dedicated assumptions table.
4. Evaluate specific exceptions before general conditions.
5. Define how blanks, missing values, and errors should be handled.
6. Test values immediately below, at, and above every boundary.
7. Compare the results with a trusted manual calculation.
8. Document the rule owner and the date of the last review.

Model Validation Checklist

• Avoid deeply nested formulas when a lookup table would be clearer.
• Keep assumptions separate from transaction data.
• Highlight records that do not match any valid rule.
• Reconcile totals before and after classifications are applied.
• Test duplicate, missing, negative, and unusually large values.
• Use descriptive column names that explain the result.
• Review the model whenever source data or business requirements change.

A formula that returns a result is not automatically correct. Reliable analysis requires visible assumptions, documented exceptions, and repeatable validation.

4. Excel Performance & Workbook Optimization

Large Excel workbooks often become slow because they contain unnecessary calculations, oversized references, duplicated logic, excessive formatting, or more imported data than the analysis requires.

Optimization should improve performance without making the workbook harder to audit or increasing the risk of incorrect results.

Performance Priorities

• Use Excel Tables and bounded ranges instead of unnecessary entire-column references.
• Calculate repeated logic once instead of repeating the same complex expression across several columns.
• Use volatile functions such as OFFSET, INDIRECT, NOW, and TODAY only when their automatic recalculation is required.
• Limit conditional formatting to the rows and columns that need it.
• Remove unused images, formatting, worksheets, connections, and named ranges after confirming they are no longer required.
• Use the Data Model when large datasets must be summarized without loading every value into worksheet cells.
• Use Power Query for repeatable importing, cleaning, combining, and reshaping instead of long chains of worksheet formulas.

Workbook Optimization Workflow

1. Save a backup copy before making structural changes.
2. Identify whether the delay occurs during opening, calculation, refresh, filtering, or saving.
3. Check formulas for entire-column references and repeated calculations.
4. Review the workbook’s used range for unnecessary rows, columns, and formatting.
5. Inspect external links, queries, PivotTables, and data connections.
6. Separate raw data, calculations, assumptions, and report outputs.
7. Optimize one component at a time and record the effect.
8. Recalculate and refresh the complete workbook.
9. Compare totals and outputs with the original version before replacing it.

Safe Optimization Checklist

• Do not replace formulas with values unless the workbook is an archived or approved final snapshot.
• Confirm that calculation mode has not been unintentionally changed.
• Preserve source data and business assumptions.
• Test refresh order when several queries or connections depend on each other.
• Validate totals, row counts, and key outputs after every structural change.
• Document removed components and keep a recoverable backup.
• Retest performance whenever the data volume or workbook structure changes.

For repeatable data preparation, use the Excel Power Query Cheat Sheet to design a documented import and transformation workflow.

5. PivotTables & PivotCharts for Fast Analysis

PivotTables summarize large Excel tables without requiring complex formulas. Use them to compare categories, calculate totals and averages, identify trends, and explore data from different perspectives. PivotCharts turn the same summary into an interactive visual report.

Quick PivotTable Workflow

1. Prepare the source data: Use one row per record, give every column a unique heading, remove blank header cells, and convert the range into an Excel Table.
2. Create the PivotTable: Select a cell in the source table, choose Insert → PivotTable, and place the report in a new or existing worksheet.
3. Arrange the fields: Add categories to Rows, comparisons to Columns, metrics to Values, and optional controls to Filters.
4. Check the calculation: Confirm whether each value field should use Sum, Count, Average, Minimum, Maximum, or another summary.
5. Add interactive controls: Use slicers for categories and a timeline for properly formatted date fields.
6. Create a PivotChart: Select the PivotTable and insert a chart that matches the comparison or trend being analyzed.
7. Refresh the report: Refresh the PivotTable whenever the source data changes.

Field Placement Quick Reference

• Rows: Categories such as products, departments, customers, or regions.
• Columns: Comparisons such as years, quarters, channels, or status.
• Values: Numeric measures such as revenue, quantity, cost, or average order value.
• Filters: Conditions that affect the complete report.
• Slicers: Visible buttons for interactive filtering.

Common PivotTable Problems

If Excel displays Count instead of Sum, check whether the source column contains numbers stored as text, blanks, or mixed data types. If new rows are missing, confirm that the source is an Excel Table and refresh the PivotTable. If totals appear incorrect, inspect active filters, duplicate source rows, blank values, and the selected calculation method.

For analysis across multiple related tables, use the Excel Data Model or Power Pivot rather than combining everything into one oversized worksheet.

6. What-If Analysis: Goal Seek, Scenarios & Data Tables

What-If Analysis helps you test assumptions without permanently rebuilding a model. Use it to calculate required targets, compare business scenarios, and measure how changes in one or two inputs affect a formula result.

Choose the Right What-If Tool

• Goal Seek: Find the single input value required to produce a specific formula result.
• Scenario Manager: Save and compare different groups of input values, such as best-case, expected, and worst-case assumptions.
• Data Table: Calculate many outcomes from one or two changing input variables.
• Solver: Use when the model requires multiple changing variables, limits, or other constraints.

Goal Seek Quick Workflow

1. Create a formula that depends on the input cell you want Excel to adjust.
2. Select Data → What-If Analysis → Goal Seek.
3. In Set cell, select the cell containing the formula.
4. In To value, enter the target result.
5. In By changing cell, select the input cell Excel may adjust.
6. Run Goal Seek and review the proposed input before accepting it.

Use Goal Seek for questions such as: “What sales volume is required to reach this profit target?” or “What interest rate produces this monthly payment?”

Scenario Manager Quick Workflow

1. Identify the input cells that contain the assumptions.
2. Select Data → What-If Analysis → Scenario Manager.
3. Add and name each scenario.
4. Enter the changing values for every scenario.
5. Use Show to apply a scenario to the worksheet.
6. Create a Scenario Summary when you need a comparison report.

Scenario summary reports do not update automatically. Create a new summary after changing the saved scenario values.

One-Variable and Two-Variable Data Tables

Use a one-variable Data Table when several possible values should be tested against one input cell. Use a two-variable Data Table when combinations of two inputs—such as price and sales volume—must be compared.

Place the test values in a row or column, reference the result formula, select the complete range, and choose Data → What-If Analysis → Data Table. Then specify the corresponding row input cell, column input cell, or both.

Reliability Checklist

• Keep the original assumptions visible and clearly labelled.
• Confirm that the target formula references the intended input cells.
• Check units, percentages, signs, and number formats.
• Save a baseline scenario before testing alternatives.
• Review whether Data Tables are slowing calculation in large workbooks.
• Treat model results as estimates based on the assumptions supplied.

7. Excel Data Model & Power Pivot

The Excel Data Model connects multiple tables through relationships, allowing PivotTables and PivotCharts to analyze them without combining everything into one worksheet. Power Pivot provides additional tools for managing the model, creating reusable calculations, and working with larger datasets.

When to Use a Data Model

Use the Data Model when:

• The analysis requires fields from multiple tables.
• Repeated lookup formulas are making the workbook difficult to maintain.
• The same business calculations must be reused in several PivotTables.
• The source contains separate transaction, customer, product, or date tables.
• A worksheet-based model has become too large or fragile.

Recommended Data Model Workflow

1. Import and clean each source table.
2. Give every table and column a clear, consistent name.
3. Confirm that matching key columns use the same data type.
4. Add the required tables to the Excel Data Model.
5. Create relationships between matching key fields.
6. Build a PivotTable from the Data Model.
7. Add measures only when reusable calculations are required.
8. Refresh the sources and validate totals before distributing the workbook.

Fact Tables and Dimension Tables

A fact table contains repeated business events such as sales, orders, transactions, or support cases. It normally includes numeric values and keys that identify related records.

A dimension table contains descriptive information such as customers, products, employees, regions, or calendar dates. Each dimension should have a unique key that can connect to the matching field in the fact table.

For example, a Sales table may contain thousands of transactions with repeated Product IDs. A Products table should contain one row for each Product ID together with its name, category, and other attributes.

Relationship Checklist

• The key on the “one” side should contain unique values.
• Connected columns must use compatible data types.
• Blank or duplicated keys should be corrected before modeling.
• Confirm that every fact-table key has a matching dimension record.
• Avoid creating unnecessary or ambiguous relationship paths.
• Test the model with a small PivotTable before adding complex calculations.

How the Excel Analysis Tools Work Together

• Power Query: Imports, cleans, combines, and reshapes source data.
• Data Model: Stores related tables inside the workbook.
• Power Pivot: Manages relationships, calculated columns, measures, hierarchies, and model structure.
• PivotTables and PivotCharts: Present and explore the model’s results.
• DAX: Creates reusable calculations that respond to the report’s filter context.

For detailed guidance on measures, filter context, and reusable model calculations, see the Power BI DAX Cheat Sheet.

Keep transformation logic in Power Query, relationship logic in the Data Model, and report calculations in measures whenever possible. This separation makes advanced Excel workbooks easier to refresh, audit, and maintain.

Common Data Model Problems

Unexpected blanks or incorrect totals often come from duplicated dimension keys, unmatched records, incorrect data types, or relationships that point in the wrong direction. Inspect the relationship diagram and test each table separately before troubleshooting complex measures.

Power Pivot availability varies between Excel versions, editions, and platforms. Confirm that the required features are available before designing a workbook that depends on them.

8. Excel Dashboards & Repeatable Reporting Workflows

An effective Excel dashboard answers a small set of business questions in one clear view. It should separate source data, calculations, and presentation so the report can be refreshed without rebuilding charts or manually copying results.

Recommended Dashboard Structure

• Data layer: Raw or imported tables that should not be edited during reporting.
• Transformation layer: Power Query steps that clean, combine, and reshape the source data.
• Model layer: Relationships, measures, and reusable calculations.
• Analysis layer: PivotTables or support ranges that feed the visuals.
• Dashboard layer: KPI summaries, charts, slicers, timelines, titles, and explanatory notes.

Keeping these layers separate makes the workbook easier to troubleshoot and reduces the risk of accidentally changing source data.

Dashboard Build Workflow

1. Define the audience and the decisions the dashboard should support.
2. Select a small number of meaningful KPIs.
3. Standardize and validate the source data.
4. Build the required queries, relationships, and calculations.
5. Create PivotTables or controlled summary ranges for each visual.
6. Add charts that match the type of comparison.
7. Add slicers or timelines only when they help users explore the report.
8. Connect shared slicers to the relevant PivotTables.
9. Test every filter combination and confirm the totals.
10. Refresh the complete workbook before distributing the report.

Choose the Right Visual

• Line chart: Trends across time.
• Column or bar chart: Comparisons between categories.
• Stacked chart: Composition within a total.
• Scatter chart: Relationships between two numeric variables.
• KPI card: A single important value, target, or variance.
• Table: Precise values that users need to inspect or export.

Avoid adding a chart only for decoration. Every visual should answer a clear question and use readable labels, units, and time periods.

Slicers, Timelines, and Report Connections

Slicers provide visible filter buttons and make the current filter state easier to understand. Timelines provide date-based filtering for compatible PivotTables.

When several PivotTables use the same source, connect one slicer to all relevant reports through Report Connections. After connecting it, test each slicer selection and the Clear Filter control to confirm that every visual responds correctly.

Refresh and Validation Workflow

1. Select Data → Refresh All.
2. Wait for queries and external connections to finish.
3. Confirm that the Data Model and PivotTables contain the latest records.
4. Check totals against a trusted control value.
5. Review active slicers, timelines, and report filters.
6. Confirm that chart titles, date ranges, and KPI labels still match the data.
7. Record the refresh date or reporting period on the dashboard.

Refresh All can also be triggered with Ctrl + Alt + F5 in supported desktop versions of Excel.

Dashboard Design Checklist

• Keep the most important KPIs near the top.
• Use a consistent grid, spacing, and number format.
• Use color consistently and never rely on color alone to communicate meaning.
• Remove unnecessary chart borders, legends, and background effects.
• Label percentages, currencies, and units clearly.
• Avoid displaying more detail than the audience needs.
• Include the reporting period and last refresh date.
• Test the dashboard at the screen size used by its audience.
• Protect presentation cells when users should only interact with filters.
• Keep a separate validation sheet for control totals and quality checks.

A dashboard is complete only when another user can refresh it, understand the filters, and interpret the results without rebuilding the workbook.

9. Excel Automation: Macros, VBA & Office Scripts

Automate an Excel process when the same predictable steps are performed repeatedly. Good candidates include formatting reports, refreshing data, creating standard worksheets, exporting results, and preparing recurring files for distribution.

Automation should make a reliable process faster. It should not hide unclear business rules or compensate for poorly structured source data.

Choose the Right Automation Tool

• Power Query: Use for repeatable data import, cleaning, reshaping, and combining.
• Recorded macro: Use for a stable sequence of desktop actions that can be replayed.
• VBA: Use for advanced desktop automation, workbook events, custom forms, and interactions with other supported Office applications.
• Office Scripts: Use for reusable workbook automation across supported Excel platforms.
• Power Automate: Use to schedule or trigger cloud workflows that run Office Scripts or connect Excel with other services.

A recorded Excel macro is stored as VBA code. Office Scripts use a separate scripting environment and are designed for cloud-based and cross-platform workflows.

Automation Planning Workflow

1. Perform the complete process manually and document every required step.
2. Separate data transformation from workbook presentation.
3. Identify the inputs, expected outputs, and possible failure conditions.
4. Choose the simplest automation tool that can complete the process reliably.
5. Replace fixed cell references with Excel Tables, named ranges, or clearly defined parameters where possible.
6. Add validation before the automation changes data.
7. Test the process on a copy of the workbook.
8. Compare the automated result with a trusted manual result.
9. Document how to run, maintain, and recover the automation.

Record a Macro

1. Make a backup copy of the workbook.
2. Enable the Developer tab if it is not already visible.
3. Select Developer → Record Macro.
4. Give the macro a descriptive name and choose where it should be stored.
5. Perform only the actions that must be repeated.
6. Select Stop Recording.
7. Run the macro on a test copy and inspect every change.
8. Open the Visual Basic Editor when the recorded code needs cleanup or additional logic.

The Macro Recorder captures most actions performed during recording, including mistakes and unnecessary selections. Plan the sequence before recording and prefer several small macros over one long, fragile procedure.

Create an Office Script

1. Open the Automate tab in a supported version of Excel.
2. Use the action recorder to capture the required workbook actions, or create a script in the code editor.
3. Review the generated script and remove unnecessary recorded steps.
4. Test the script with different valid inputs.
5. Add clear error handling for missing tables, worksheets, or expected columns.
6. Associate the script with the workbook or add a script button when other users need to run it.
7. Use Power Automate when the script must run on a schedule or in response to another service.

Office Scripts do not run from normal Excel workbook events. They run when started by a user or called by a supported Power Automate flow.

Automation Safety Checklist

• Never enable or run macros from an unknown or untrusted source.
• Test macros and scripts on a copy because automated changes may not be undoable.
• Confirm workbook, worksheet, table, and column names before execution.
• Avoid storing passwords, tokens, or other secrets inside code.
• Validate row counts, totals, and output files after every run.
• Stop the process when a required input is missing instead of continuing with partial data.
• Use descriptive names for procedures, variables, scripts, and output files.
• Document the owner, purpose, dependencies, and last review date.
• Follow the organization’s macro, sharing, and security policies.
• Confirm that the required Excel version, license, and platform support the chosen tool.

Maintainable Automation Principles

Keep each automation focused on one process. Separate configuration values from the main logic, avoid unnecessary selections and screen actions, and record meaningful errors when a step fails.

Review automated workbooks whenever the source structure, reporting requirements, file location, or Excel environment changes. A process that runs without errors can still produce incorrect results if its assumptions are no longer valid.
